Taylor 428 · Frozen Beverage Freezer

Taylor 428 Parts Diagram & Part Number Reference

Every genuine OEM part for the Taylor Model 428 shake & slush freezer, organized by assembly and covering both door styles — scraper blades, driveshaft seals, O-rings, door gaskets, draw valves, bearings, the beater, brushes, and tune-up kits. Each Taylor 428 part number links straight to the part in our store, in stock and shipping from Upstate NY.

Shop 428 Parts → Replacement Schedule

Model428 Shake / Slush Freezer

SourceTaylor Manual 055058-M

DoorsStandard & Self-Closing

UpdatedJune 2026

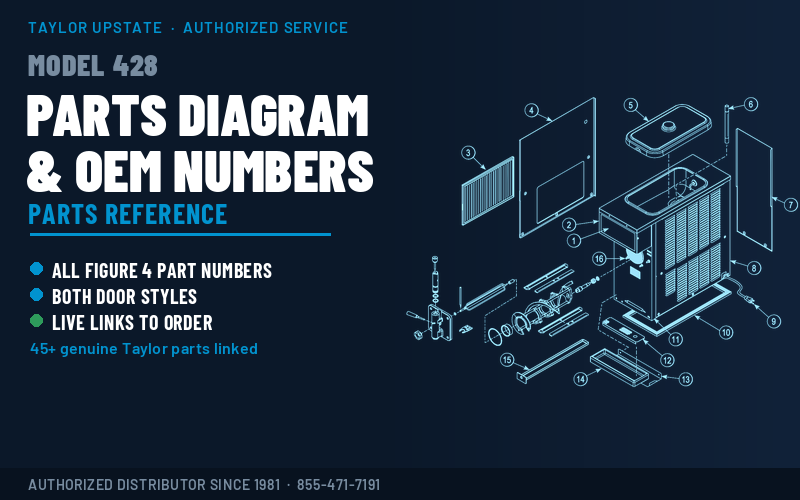

Taylor 428 frozen beverage freezer genuine OEM parts reference — Genuine Taylor 428 (428/12) OEM parts — confirm your door style by serial number before ordering.

Before You Order The 428 ships in two door styles — a standard door (no prime plug) and a self-closing / prime-plug door. They share most parts, but the draw valve, guide bearing, and tune-up kit differ. Confirm your door style by the machine's serial number before ordering, or call us and we'll match it.

Parts by Assembly

Cabinet & Controls
Beater & Driveshaft
Door — Standard
Door — Self-Closing
Brushes & Consumables
Replacement Schedule

Cabinet & Controls

Part	OEM #
Power switch (OFF / AUTO / WASH)	048420
ADD MIX indicator light	052486-02
MIX OUT indicator light	052487-02

Beater & Driveshaft Assembly

Part	OEM #
Beater assembly	X46233
Drive shaft	035418
Scraper blade (plastic) — replace every 6 months	084950
Drive shaft seal — replace every 3 months	032560
Drive shaft O-ring (7/8") — replace every 3 months	025307
Front door / guide bearing (standard) — replace every 6 months	013116

Freezer Door — Standard

Part	OEM #
Draw valve (standard door)	047734
Draw valve O-ring (1" OD) — replace every 3 months	032504
Door gasket (5.109" ID) — replace every 6 months	014030
Front door bearing	013116
Tune-up kit (standard door)	X39969

Freezer Door — Self-Closing / Prime-Plug

Part	OEM #
Draw valve (self-closing)	080662
Guide bearing (self-closing)	014496
Draw valve O-ring (1" OD) — replace every 3 months	032504
Door gasket — replace every 6 months	014030
Tune-up kit (prime-plug door)	X50413

Door-Style Tune-Up Kits Order X39969 for the standard door or X50413 for the self-closing / prime-plug door. Each kit bundles the seals, O-rings, and blades on the factory replacement schedule.

Brushes, Sanitizer & Consumables

The genuine plastic cleaning brushes, sanitizer, and lubricant for the 428 daily routine — available individually or as a cleaning brush kit. These link straight to the product page:

Part	OEM #
Stera-Sheen® Green Label sanitizer — cleaner & soft serve machine sanitizer	055492
Taylor Lube — food-grade sanitary lubricant, 4 oz	047518
Cleaning pail (10 qt)	013163
Double-ended brush	013072
Rear-bearing tank brush (1"×2", black bristle)	013071
Draw-valve brush	013073
Syrup-port brush	045079
Mix / feed-tube brush	023316

Cleaning the machine? The full routine is in the 428 Cleaning & Sanitizing Guide.

Factory Replacement Schedule

From Table 9-1 of the 428 manual — replacing wear parts on schedule is what prevents the leaks, scoring, and texture problems in the troubleshooting guide.

Interval	Parts
Every 3 months	Drive shaft seal (032560), draw-valve O-ring (032504), drive shaft O-ring (025307)
Every 6 months	Scraper blade (084950), door gasket (014030), front / guide bearing (013116 / 014496)
Warranty	Beater drive gear — 2 years; compressor — 5 years

Save With a Tune-Up Kit The 3- and 6-month wear parts come bundled in the door-specific tune-up kit — X39969 (standard) or X50413 (prime-plug). Seeing leaks or scoring already? Start with the 428 Troubleshooting Guide.

Order Genuine Taylor 428 Parts

Not sure which part fits your door style? Our parts team matches it by serial number. Ships from our Troy & Marcellus, NY warehouses.

Shop 428 Parts → Call 800-678-2956

Need Help Identifying a Part?

Send us your machine's serial number and we'll pull the exact part — standard or self-closing door.

Contact Taylor Upstate

Part numbers are drawn from the Taylor Model 428 Operator's Manual (055058-M) and are current to that revision. The 428 has two door styles whose draw valve, guide bearing, and tune-up kit differ — always confirm fit against your machine's serial number before ordering. This reference is a convenience and does not replace the manual.
