Taylor C722 · Twin Twist Soft Serve Freezer

Taylor C722 Parts Diagram
& OEM Part Numbers

Every Taylor C722 operator-replaceable part from Manual 080568-M Section 4 — all five exploded diagrams, complete OEM part numbers, and replacement intervals. Genuine Taylor ice cream machine parts linked directly to our store.

📋 Source: Taylor Manual 080568-M Section 4 ✅ Authorized Taylor distributor since 1981 📦 Ships same day from Troy & Marcellus, NY
Taylor C722 twin twist soft serve freezer
← Back to All Service Guides
On This Page
  1. Fig. 4-1 — Cabinet & Frame
  2. Fig. 4-2 — Door & Beater Assembly
  3. Fig. 4-3 — Mix Pump X69928-14S
  4. Fig. 4-4 — Accessories
  5. Fig. 4-5 — Brushes
  6. Replacement Schedule

The Taylor C722 is Taylor's twin twist countertop soft serve freezer — two 2.8 qt. (2.7 L) freezing cylinders, a three-spout door, and a simplified stainless steel mix pump. This page covers every operator-serviceable part organized exactly as Taylor does in Manual 080568-M Section 4. Panels and structural components not available separately are marked "Call us" — call 800-678-2956. All Buy buttons link to verified, active OEM Taylor part listings in our store.

Using genuine Taylor OEM parts is required to maintain your Taylor warranty. Third-party knockoff parts from aftermarket suppliers are not covered and can void your 5-year compressor warranty. Taylor Upstate is the only authorized Taylor distributor for Upstate New York.

Section 1 · Manual 080568-M Figure 4-1

Cabinet & Frame — C722 Exploded View

Structural panels, drip pans, filters, and optional feed tube components. This figure shows the full C722 machine with all major external parts called out.

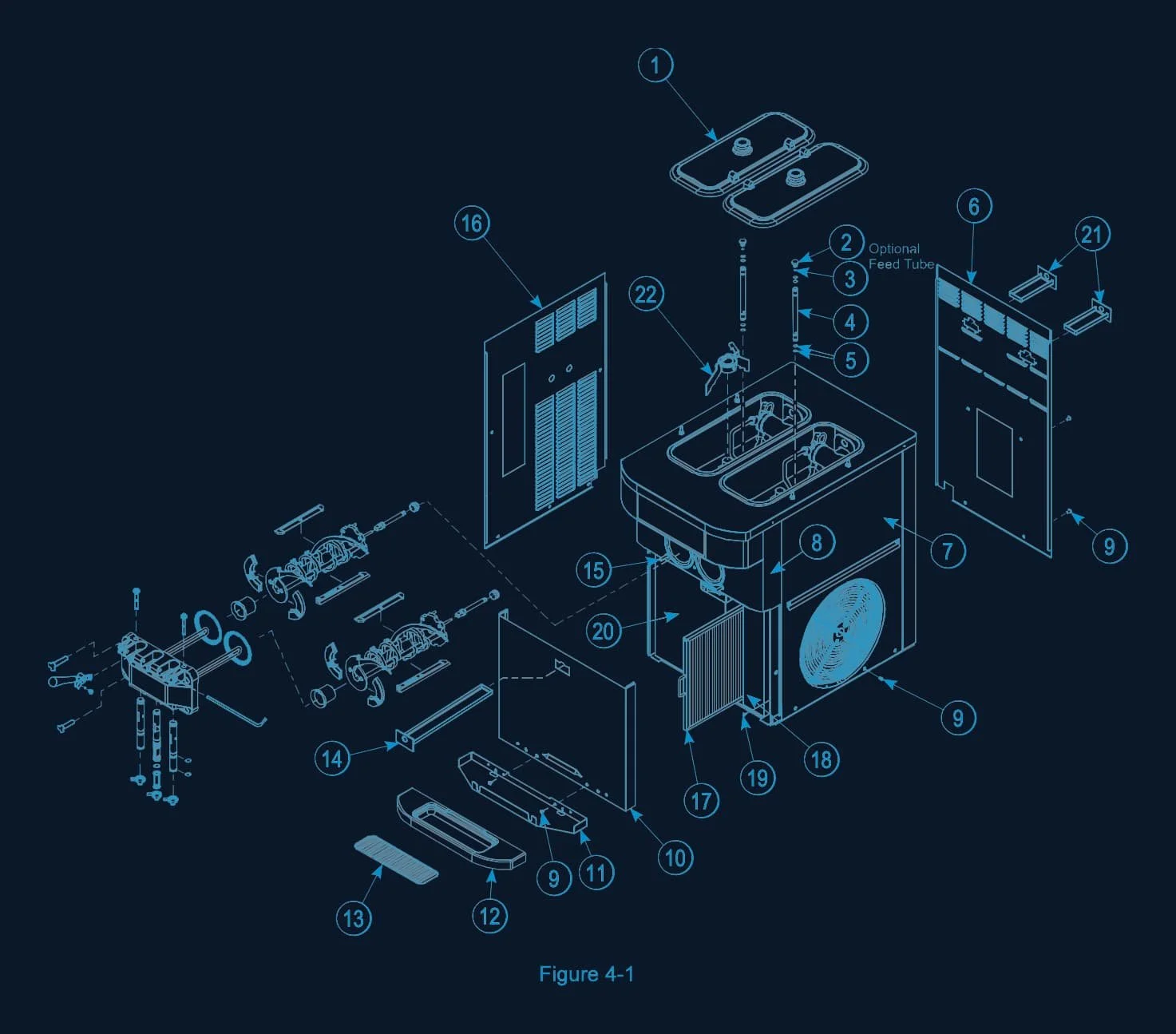

Taylor C722 exploded parts diagram Figure 4-1 — cabinet and frame
Figure 4-1 · C722 Exploded View · Taylor Manual 080568-M · Taylor Upstate
ItemDescriptionPart No.Buy
1Kit A.-Hopper CVR 14 Qt BLAX69146Buy OEM
**2Orifice — Optional Feed Tube022465-100Buy OEM
**3O-ring-11/16 OD × .103W Red — Optional Feed Tube016132Buy OEM
**4Tube A.-Feed-SS-5/32 Hole — Optional Feed TubeX29429-2Call us
**5O-ring-.643 OD × .077W — Optional Feed Tube018572Buy OEM
6Panel-Rear080162Call us
7Panel A.-Side RightX68854Call us
8Panel A.-FrontX81843Call us
9Screw-1/4-20 × 3/8 Slotted011694Buy OEM
10Panel A.-Front-LowerX81841Call us
11Shelf-Drip Tray080782Buy OEM
12Tray-Drip080781Call us
13Shield-Splash-Wire046177-SPCall us
14Pan A.-Drip 15-1/8 LongX51601Buy OEM
15Stud-Nose Cone055987Call us
16Panel-Side Left068851Call us
17Filter A. (complete filter assembly)X81440Buy OEM
17AFilter-Air-18.28 × 15.5 × .70 (replacement filter element)052779-15Buy OEM
18Cover-Access-Front-R.056933Buy OEM
19Screw-10 × 3/8 Slotted Hex015582Buy OEM
20Cover-Access-Left081834Buy OEM
21Pan-Drip-Rear080226Buy OEM
*22Blade A.-Agitator (factory-equipped agitator units only)X56591-SPBuy OEM

*Item 22 is for factory-equipped agitator units only. **Items 2–5 are Optional Feed Tube parts only. Panel and cabinet parts are available — call 800-678-2956 with your serial number.

Section 2 · Manual 080568-M Figure 4-2

Door & Beater Assembly

The highest-wear components on the C722. Scraper blades, driveshaft seal, front bearing/shoe kit, and draw valve O-rings all have scheduled replacement intervals. Inspect blades at every daily cleaning — replace both if either is nicked.

Three C722 parts must never be lubricated: The red piston O-ring (Item 4 inner), the pump valve cap O-ring, and the pump valve gasket (Figure 4-3, Item 2). All other O-rings and the driveshaft body should be lubricated with Taylor Lube (047518).

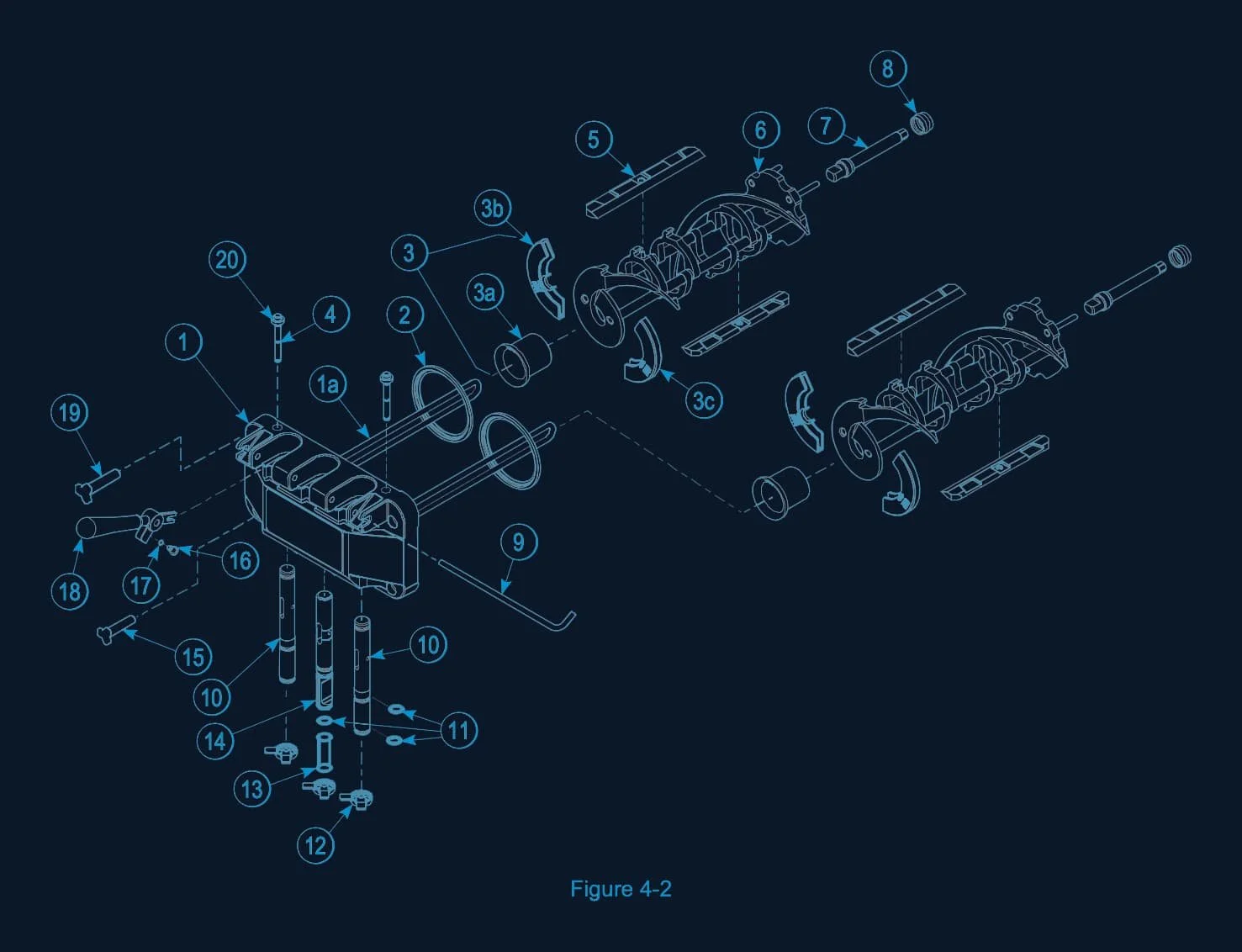

Taylor C722 door and beater assembly exploded parts diagram Figure 4-2
Figure 4-2 · Door & Beater Assembly · Taylor C722 · Manual 080568-M
ItemDescriptionPart No.Replace EveryBuy
1Door A.-SH BAF w/PRG (complete 3-spout door)X68889-SERAs neededBuy OEM
1aBaffle A.-Short 4"X50883As neededBuy OEM
2Gasket-Door HT 4"-Double0489266 monthsBuy OEM
3Kit A.-Beater-Front Shoes-Bearing (3a, 3b, 3c not sold separately)X503506 monthsBuy OEM
4O-ring-1/2 OD × .070W (prime plug)0242786 monthsBuy OEM
5Blade-Scraper-Plastic C722 — inspect daily, replace both if either nicked0849783 monthsBuy OEM
6Beater A.-2.8QT-1 PinX80291As neededBuy OEM
7Shaft-Beater C722081707As neededBuy OEM
8Seal-Drive Shaft (boot seal) — middle section must be convex when installed0325603 monthsBuy OEM
9Pin-Handle-Twin059894As neededBuy OEM
10Valve A.-Draw (outer spouts)X69615As neededBuy OEM
11O-ring-7/8 OD × .103W SIL — draw valve0836933 monthsBuy OEM
12Cap-Design 1.010" ID-6 Point0142183 monthsBuy OEM
13Seal-Draw Valve-Large H (center spout)0346983 monthsBuy OEM
14Valve A.-Draw-CenterX62218As neededBuy OEM
15Nut-Stud-Black 2.563 Long058764As neededBuy OEM
16Screw-Adjustment-5/16-24056332As neededBuy OEM
17O-ring-1/4 OD × .070W — feed tube & prime plug0158726 monthsBuy OEM
18Handle A.-Draw-WeldedX56421-1As neededBuy OEM
19Nut-Stud-Black 3.250 Long058765As neededBuy OEM
20Plug-Prime Twin059936As neededBuy OEM

Items 3a (Bearing-Front Shoe), 3b (Shoe-Front Helix-Front), and 3c (Shoe-Front Helix-Rear) are not available separately — order Kit X50350.

Section 3 · Manual 080568-M Figure 4-3

X69928-14S Pump A.-Mix Simplified S.S.

The C722 uses a simplified stainless steel mix pump assembly specific to this model — the pump cylinder, piston, adaptor, and feed tubes are all different from the C712. Do not substitute C712 pump parts on the C722.

The red piston O-ring (Item 4) and the pump valve gasket (Item 2) must NEVER be lubricated. Lubricating these two parts causes the pump to lose overrun pressure, resulting in inconsistent product texture and incorrect mix draw rates. All other pump parts should be lubricated with Taylor Lube (047518).

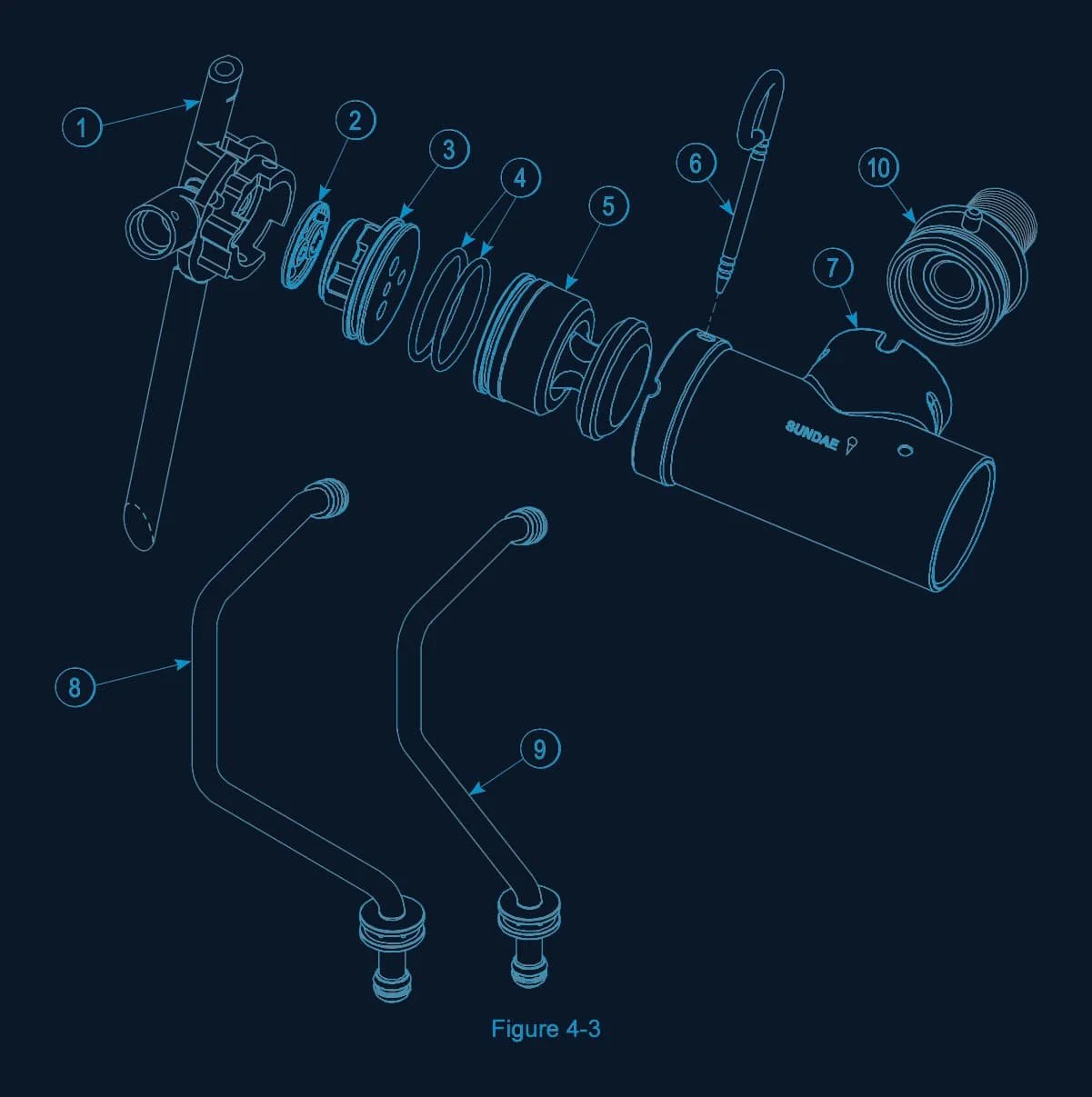

Taylor C722 mix pump assembly X69928-14S exploded parts diagram Figure 4-3
Figure 4-3 · X69928-14S Pump A.-Mix Simplified S.S. · Taylor C722
Section 4 · Manual 080568-M Figure 4-4

Accessories

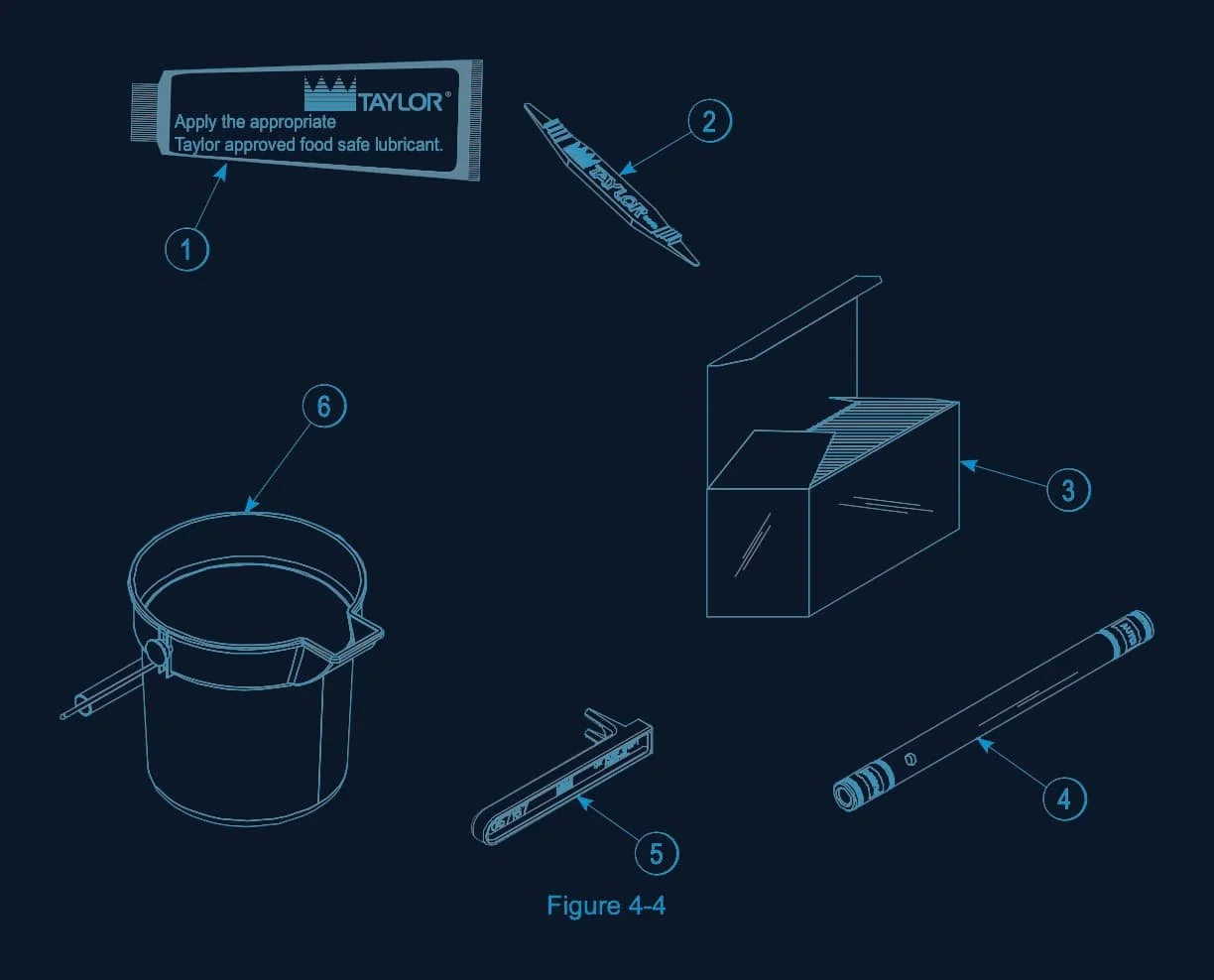

Taylor C722 accessories parts diagram Figure 4-4
Figure 4-4 · Accessories · Taylor C722 · Manual 080568-M

*A sample sanitizer container ships with the machine; reorder Stera-Sheen (055492). **Not shown in Figure 4-4. ***Optional Feed Tube part only.

C722 Tune-Up Kit (X49463-97): All quarterly and semi-annual C722 wear parts — scraper blades, driveshaft seal, door gasket, O-rings, pump gasket — bundled at significant savings vs. individual parts. Most operators keep one kit per cylinder on hand so technicians can complete the PM in a single visit without waiting on parts.
Section 5 · Manual 080568-M Figure 4-5

Brushes

All four brushes ship with a new C722. Each brush is designed for a specific part of the machine — using the wrong brush risks incomplete cleaning and failed bacterial count inspections. Inspect at every cleaning and replace when bristles are bent, splayed, or missing.

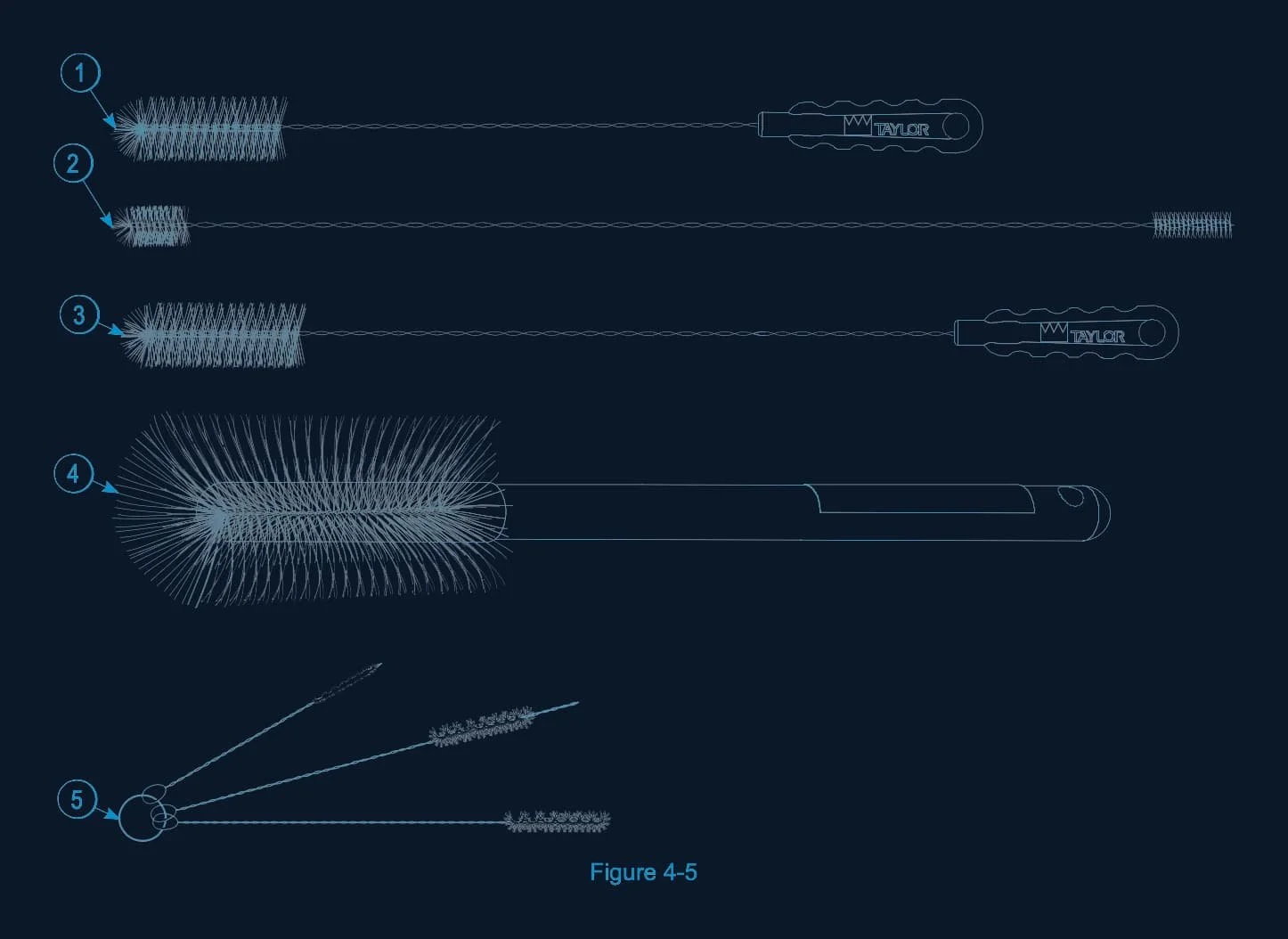

Taylor C722 brush set parts diagram Figure 4-5
Figure 4-5 · Brushes · Taylor C722 · Manual 080568-M
ItemDescription & PurposePart No.Buy
1Brush-Rear BRG. 1"×2"×14" (black bristle) — rear shell bearing at back of cylinder and drive hub opening in hopper wall013071Buy OEM
2Brush-Double End — mix inlet hole passage from hopper to cylinder013072Buy OEM
3Brush-Draw Valve 1"×2"×17" — door spout passages and draw valve bores in freezer door013073Buy OEM
4Brush-Mix Pump Body 3"×7" — mix hopper walls and mix-level sensing probe023316Buy OEM
5Brush-Set (013071 + 013072 + 013073 bundled)050103Buy Set
Section 6 · Manual 080568-M Table 9-1

C722 OEM Parts Replacement Schedule

Taylor's official wear parts schedule from Manual 080568-M. Replacing parts on schedule prevents scored cylinders, product leakage, and bacterial count failures — and is required to maintain your Taylor warranty. All parts below are genuine OEM Taylor, stocked in our Troy and Marcellus, NY warehouses.

IntervalParts
Every 3 months Scraper Blade C722 (084978) · Driveshaft Seal (032560) · Draw Valve O-ring 7/8 SIL (083693-SER) · Draw Valve H-ring (034698) · Design Caps (014218)
Every 6 months Door Gasket (048926) · Front Bearing/Beater Shoes Kit (X50350) · Feed Tube & Prime Plug O-ring (015872-SER) · Pump Piston O-ring Red — DO NOT LUBRICATE (020051-SER) · Pump Valve Gasket — DO NOT LUBRICATE (086097) · Feed Tube Check Ring (056524) · Pump Driveshaft O-ring (048632-SER)
Annually (inspect) All brushes — Brush Set (050103) — replace if bristles bent, splayed, or missing
Warranty periods Beater motors — 2 years · Beater drive gear — 2 years · Compressor — 5 years · Insulated shell — 5 years. Genuine OEM parts and authorized service required for all warranty claims.
Best value: The C722 Tune-Up Kit (X49463-97) bundles all quarterly and semi-annual C722 wear parts in one order — the most cost-effective way to stay on Taylor's OEM schedule and protect your warranty. See also the C722 Cleaning & Sanitizing Guide for the full daily procedure.
