Taylor C712 · Soft Serve Freezer

Taylor C712 Parts Diagram
& Part Number Reference

Every C712 operator-replaceable part from Taylor Manual 062179-M Section 4 — cabinet & frame, door & beater, mix pump, accessories, and brushes — with OEM numbers linked directly to our store.

📋 Source: Taylor Manual 062179-M 📦 Ships from Troy & Marcellus, NY ✅ Authorized Taylor distributor since 1981

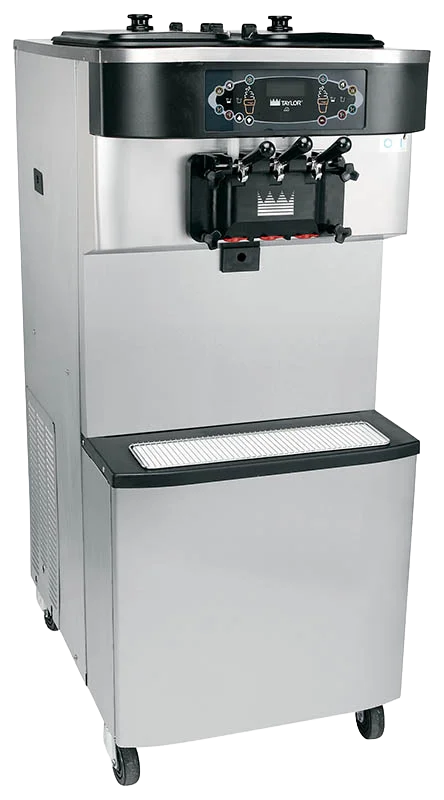

Taylor C712 soft serve freezer
On This Page
  1. Cabinet & Frame — Figure 4-1
  2. Door & Beater — Figure 4-2
  3. Mix Pump — Figure 4-3
  4. Accessories — Figure 4-4
  5. Brushes — Figure 4-5
  6. Replacement Schedule
Section 1 · Figure 4-1

Cabinet & Frame — Exploded View

Structural panels, drip pans, filters, casters, and optional feed tube components. Parts with a Buy button are verified in our store. Items showing "Call us" are available by phone at 800-678-2956.

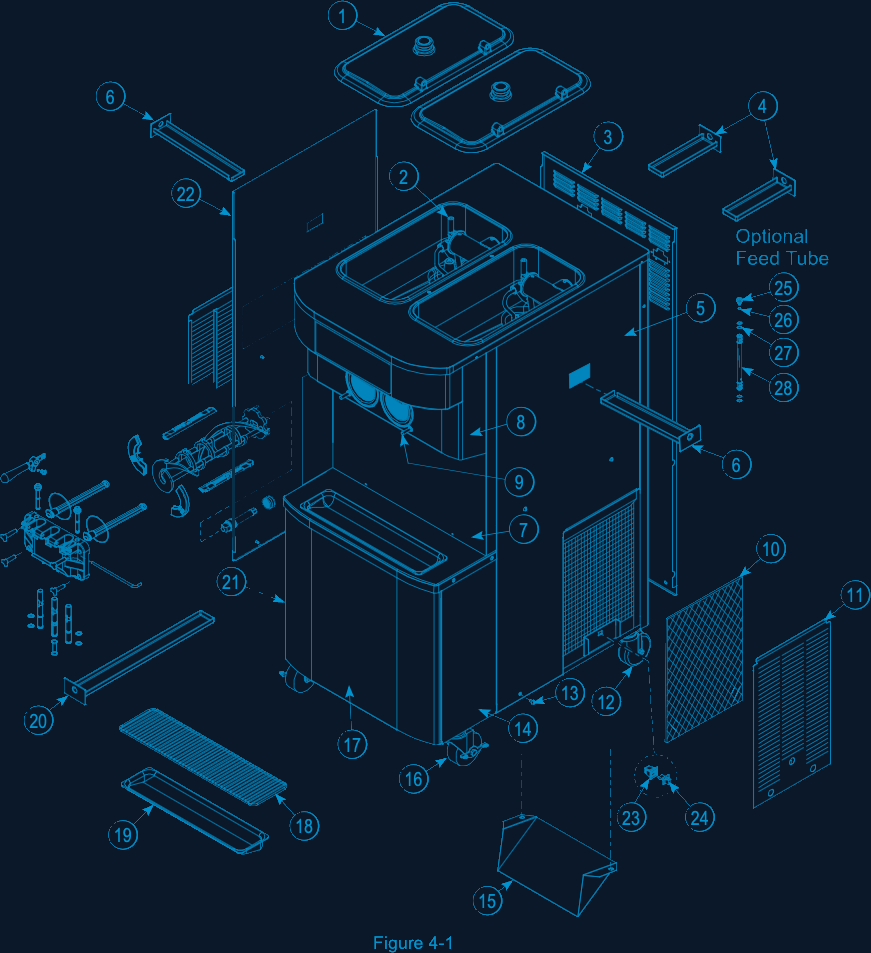

Taylor C712 exploded cabinet and frame parts diagram Figure 4-1
Figure 4-1 · C712 Exploded View · Taylor Manual 062179-M
ItemDescriptionPart No.Buy
1Kit A.-Cover-Hopper*DualX67061-SPBuy
2Pump A.-Mix Simplified (see Figure 4-3)X57029-14Buy
3Panel-Rear064258-SERCall us
4Pan-Drip 7.875059737Buy
5Panel-Side*Right059907Call us
6Pan-Drip 12.5059736Call us
7Panel A.-Front-MiddleX63879Call us
8Panel A.-Front-UpperX59836Call us
9Stud-Nose Cone055987Call us
10Filter-Air-Poly-Flo052779-11Buy
11Panel A.-Filter-LouveredX59928Call us
12Caster-4" SWV 3/4-10 STM044106Buy
13Screw-1/4-20 × 3/8 RHM011694Buy
14Panel-Corner-Front-R063087Call us
15Deflector-Blower Exh047912Buy
16Caster-4" SWV 3/4-10 Stem w/Brake046437Buy
17Panel A.-Front LowerX59854-SERCall us
18Shield-Splash-Wire-19-3/4 L033813Buy
19Tray-Drip-19-5/8 L × 4-7/8033812Buy
20Pan-Drip 19-1/2 Long035034Buy
21Panel-Corner-Frnt-L063088Call us
22Panel-Side-Left059906Call us
23Fastener-Door Latch030787Buy
24Fastener-Door Strike030788Buy
*25Orifice (Optional Feed Tube)022465-100Buy
*26O-ring-3/8 OD × .070W — 100 to bag (Optional Feed Tube)016137Buy
*27O-ring-.643 OD × .077W — 50 to bag (Optional Feed Tube)018572Buy
*28Tube A.-Feed-SS-5/32 Hole (Optional Feed Tube)X29429-2Buy

*Items 25–28 are Optional Feed Tube parts. Panel-Rear, side panels, corner panels, and front panels are available — call us with your serial number for availability.

Section 2 · Figure 4-2

Door & Beater Assembly

The highest-wear parts on the C712. Drive shaft seal, scraper blades, draw-valve O-rings, and door gasket all have factory-scheduled replacement intervals. See the Replacement Schedule below.

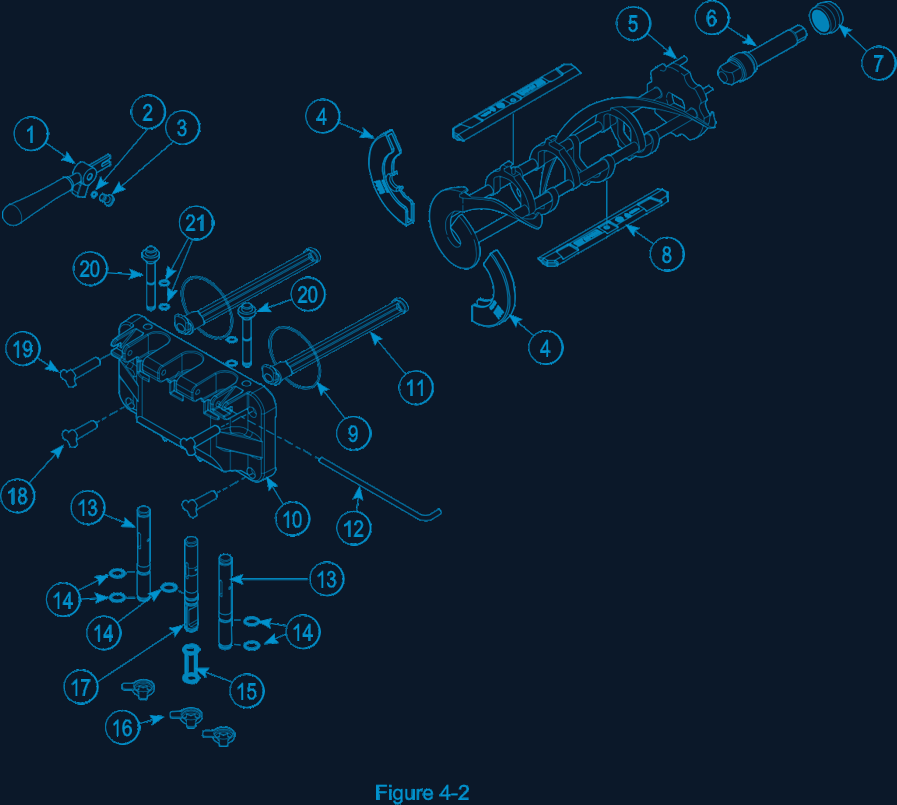

Taylor C712 door and beater assembly Figure 4-2
Figure 4-2 · Door & Beater Assembly · Taylor C712
ItemDescriptionPart No.Replace EveryBuy
1Handle A.-Draw-WeldedX56421-1As neededBuy
2O-ring-1/4 OD × .070W015872-SER6 monthsBuy
3Screw-Adjustment-5/16-24056332As neededBuy
4Kit A.-Beater-Front Shoes-BearingX503503 monthsBuy
5Beater A.-3.4QT-1 PinX46231As neededBuy
6Shaft-Beater032564As neededBuy
7Seal-Drive Shaft0325603 monthsBuy
8Blade-Scraper-Plastic 8-1/2"0843503 monthsBuy
9Gasket-Door HT 4"-Double0489266 monthsBuy
10Door A.-3SPT Threadless w/Prime (complete door)X88684-SERAs neededBuy
11Baffle-Threadless Molded087708As neededBuy
12Pin-Handle-Twin059894As neededBuy
13Valve A.-Draw (outer spouts)X69615As neededBuy
14O-ring-7/8 OD × .103W-SIL083693-SER3 monthsBuy
15Seal-Draw Valve (H-ring)0346983 monthsBuy
16Cap-Design 1.010"ID-6 Point014218As neededBuy
17Valve A.-Draw-CenterX62218As neededBuy
18Nut-Stud-Black 2.563 Long058764As neededBuy
19Nut-Stud-Black 3.250 Long058765As neededBuy
202 Plug-Prime Twin059936As neededBuy
21O-ring-.500 OD × .070W024278-SERAs neededBuy
Section 3 · Figure 4-3

X57029-14 Mix Pump Assembly

Red O-rings (Items 4 & 9) and the pump valve gasket (Item 6) must NOT be lubricated. Lubricating these parts causes the pump to lose pressure and produce inconsistent product. All other parts should be lubricated per the manual.

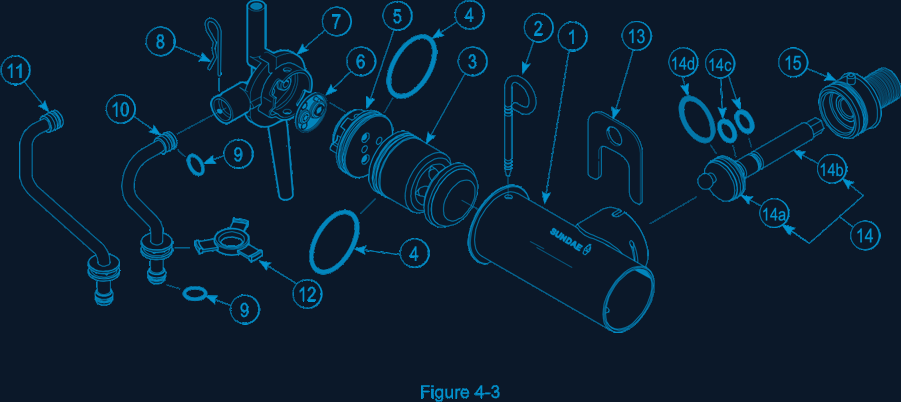

Taylor C712 mix pump assembly Figure 4-3
Figure 4-3 · X57029-14 Pump A.-Mix Simplified · Taylor C712

*The standard pump is X57029-14. Overrun can be changed by substituting the valve body cap — the higher the number suffix, the higher the overrun. Two optional caps (056874-12 and 056874-16) are included with the machine.

ItemDescriptionPart No.Replace EveryBuy
1Cylinder-Pump-Hopper-Soft Serve057943As neededBuy
2Pin-RetainingX55450As neededBuy
3Piston053526As neededBuy
4O-ring 2-1/8" OD Red — DO NOT LUBRICATE020051-SER6 monthsBuy
5Cap-Valve (standard #14)056874-14As neededBuy
6Gasket-Simplified Pump Valve — DO NOT LUBRICATE0860976 monthsBuy
7Adaptor-Mix Inlet054825As neededBuy
8Pin-Cotter044731As neededBuy
9O-ring 11/16 OD Red — DO NOT LUBRICATE016132-SER6 monthsBuy
10Tube A.-Feed-RightX59809As neededBuy
11Tube A.-Feed-LeftX59808As neededBuy
12Ring-Check-Feed Tube0565246 monthsBuy
13Clip-Retainer-Mix Pump044641As neededBuy
14Shaft A.-Drive-Mix Pump (complete)X41947As neededBuy
14aCrank-Drive039235As neededBuy
14bShaft-Drive041948As neededBuy
14cO-ring-Drive Shaft (1/2" ID × .139W)048632-SER6 monthsBuy
14dO-ring 1-3/4 OD × .139W008904-SER6 monthsBuy
15Sleeve A.-Mix PumpX44761As neededBuy
Section 4 · Figure 4-4

Accessories

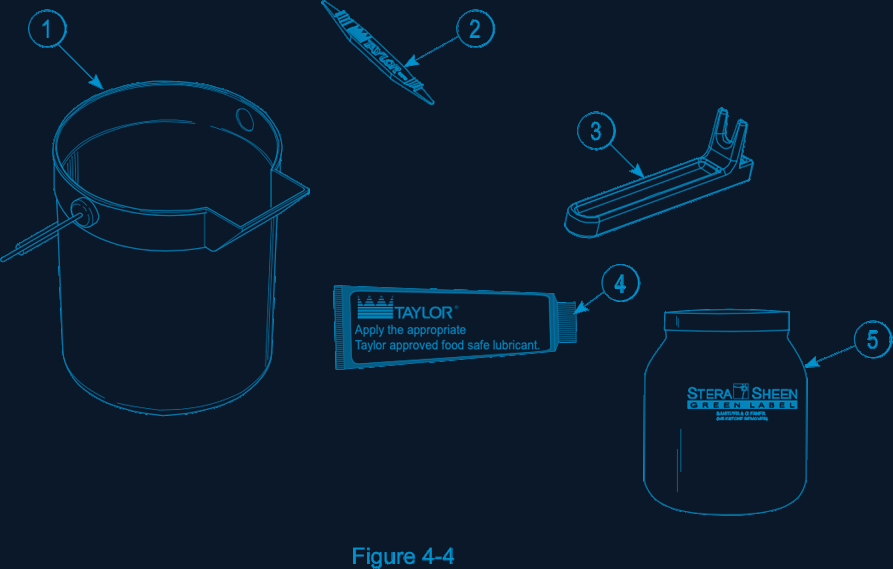

Taylor C712 accessories Figure 4-4
Figure 4-4 · Accessories · Taylor C712
ItemDescriptionPart No.Buy
1Pail-10 qt.013163Buy
2Tool-O-ring Removal048260-WHTBuy
3Tool-Mix Pump Shaft Removal057167Buy
4Lubricant-Taylor 4 oz.047518Buy
5Sanitizer-Stera Sheen Green Label (100 pk)055492Buy
**Kit A.-Tune-Up C712X49463-81Buy

**Not shown in Figure 4-4. A sample sanitizer container ships with the machine; reorder Stera-Sheen 055492 (100 packs).

Section 5 · Figure 4-5

Brushes

All brushes are included with a new C712. Inspect at each cleaning and replace when bristles are bent, splayed, or missing. Each brush is sized for a specific part of the machine.

ItemDescriptionPart No.Buy
1Black Bristle Brush (1" × 2" × 14") — rear shell bearing & drive hub013071Buy
2Double End Brush — mix inlet hole hopper to cylinder013072Buy
3White Bristle Brush (1" × 2") — door spout passages013073Buy
4Brush Set (3) — items 1, 2 & 3 bundled050103Buy
5Brush-End-Door-Spout SS — inside of door spout039719Buy
6White Bristle Brush (3" × 7") — mix hopper walls023316Buy
7Brush-Pump Spout — mix pump sleeve interior054068Buy
Section 9 · Table 9-1

Parts Replacement Schedule

From Table 9-1 of the C712 Operator's Manual. Replacing wear parts on schedule prevents the leaks, scoring, and texture problems covered in the troubleshooting guide.

IntervalParts
Every 3 months Scraper blade (084350) · Drive shaft seal (032560) · Draw valve O-ring 7/8 (083693-SER) · Draw valve H-ring (034698)
Every 6 months Door gasket (048926) · Front bearing/beater shoes (X50350) · Prime plug O-ring (015872-SER) · Pump valve gasket (086097) · Pump driveshaft O-ring (048632-SER) · Feed tube check ring (056524)
Annually (inspect) All brushes — replace if bristles are bent, splayed, or missing
Warranty Beater drive gear — 2 years · Beater motors — 2 years · Compressor — 5 years · Insulated shell — 5 years
Save with a Tune-Up Kit. The quarterly and semi-annual wear parts are bundled in the C712 Tune-Up Kit X49463-81. Already seeing leaks, soft product, or an error code? Start with the C712 Error Codes or Cleaning Guide.
