Frozen Beverage & Cocktails

A Taylor® smoothie machine is an ideal way to increase your profits without sacrificing valuable space. Our smoothie machines can produce a delicious flavor as is, or made with fresh fruit. All our smoothies freezers are easy-to-use operation, Taylor foodservice equipment delivers consistent quality products draw after draw.

  Model 340   Frozen Uncarbonated Beverage (FUB) Freezer  Vary your menu by offering smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.  KEY SPECIFICATIONS:   Finished Products : Frozen Beverage, Smoothies   Installation : Countertop   Number of Flavors : 1   Freezing Cylinder QTY : 1   Freezing Cylinder Size (qt/l) : 7/6.6

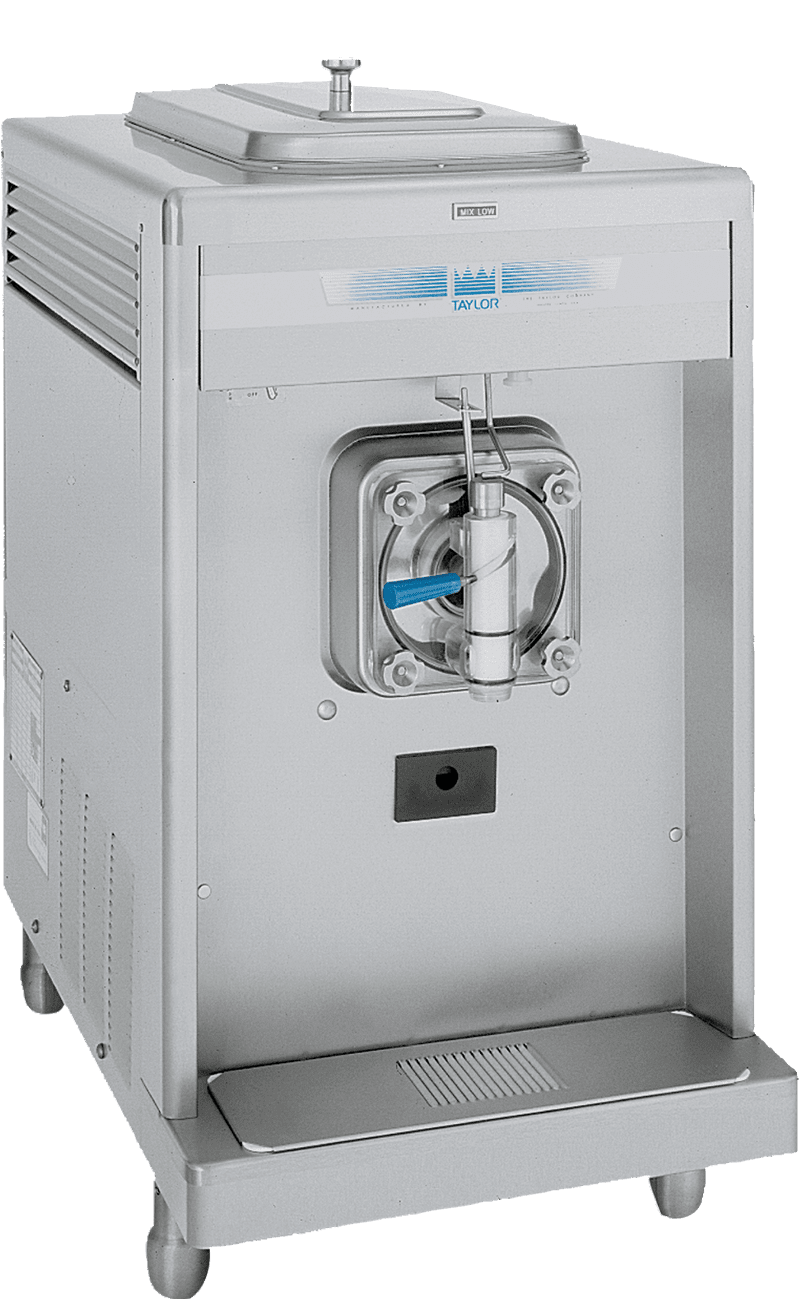

Model 340

Frozen Uncarbonated Beverage (FUB) Freezer

Vary your menu by offering smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.

KEY SPECIFICATIONS:

Finished Products: Frozen Beverage, Smoothies

Installation: Countertop

Number of Flavors: 1

Freezing Cylinder QTY: 1

Freezing Cylinder Size (qt/l): 7/6.6

  Model 342   Frozen Uncarbonated Beverage (FUB) Freezer  Vary your menu by offering smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.  KEY SPECIFICATIONS:   Finished Products : Frozen Beverage, Smoothies   Installation : Floor   Number of Flavors : 2   Freezing Cylinder QTY : 2   Freezing Cylinder Size (qt/l) : 7/6.6

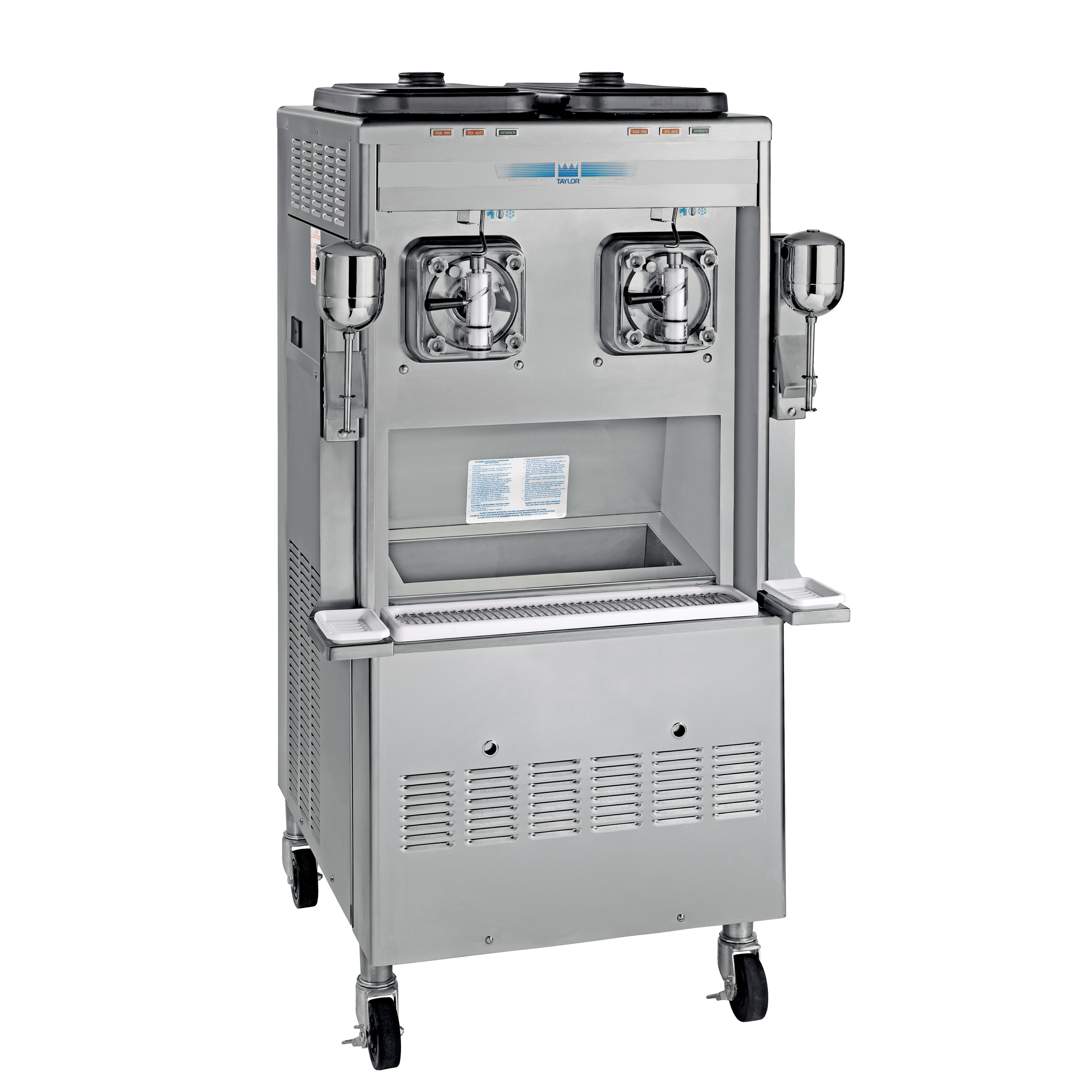

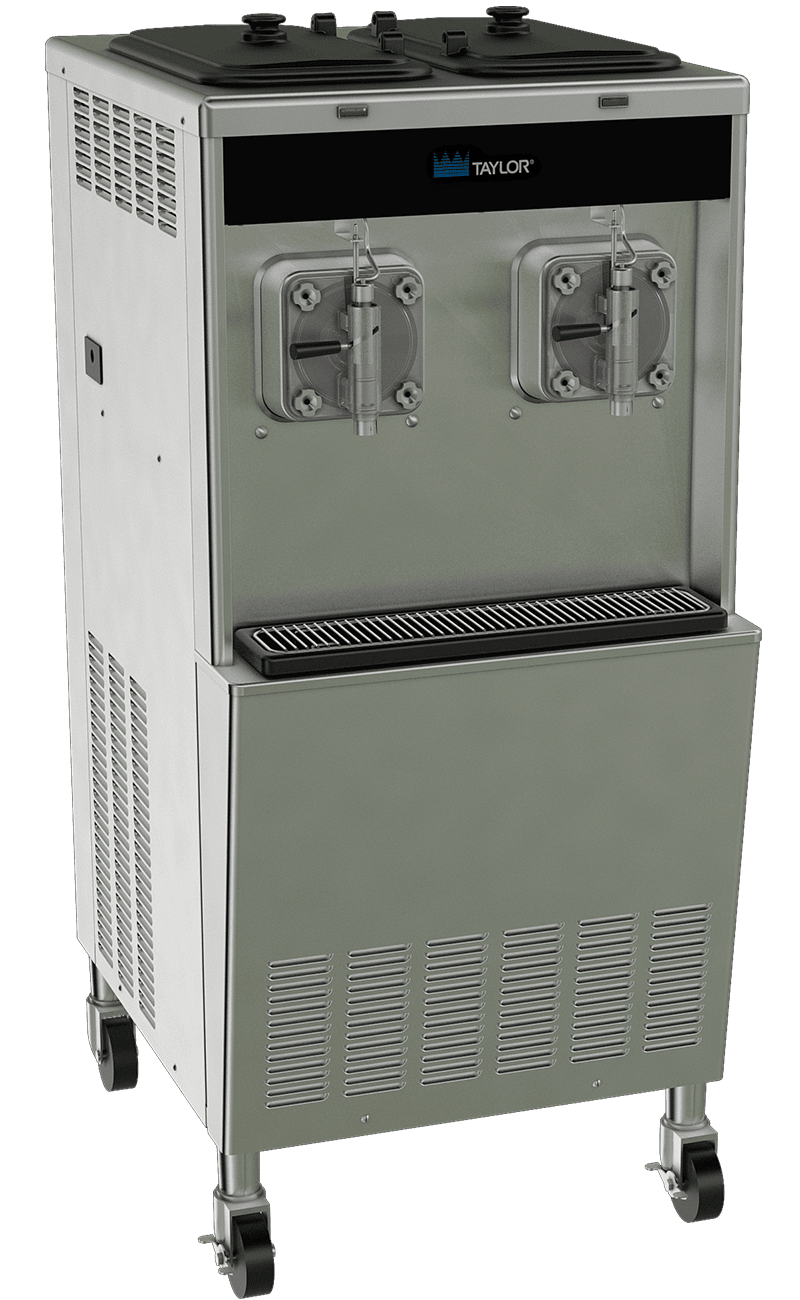

Model 342

Frozen Uncarbonated Beverage (FUB) Freezer

Vary your menu by offering smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.

KEY SPECIFICATIONS:

Finished Products: Frozen Beverage, Smoothies

Installation: Floor

Number of Flavors: 2

Freezing Cylinder QTY: 2

Freezing Cylinder Size (qt/l): 7/6.6

  Model 390   Frozen Uncarbonated Beverage (FUB) Freezer  Serve non-dairy frozen beverages, like smoothies or frozen lemonade or cocktails, fruit juices, coffees, cappuccino and tea. Pre-mix directly into a cup or blend flavors for more variety.  KEY SPECIFICATIONS:   Finished Products : Frozen Beverage, Smoothies   Installation : Countertop   Number of Flavors : 1   Freezing Cylinder QTY : 1   Freezing Cylinder Size (qt/l) : 7/6.6

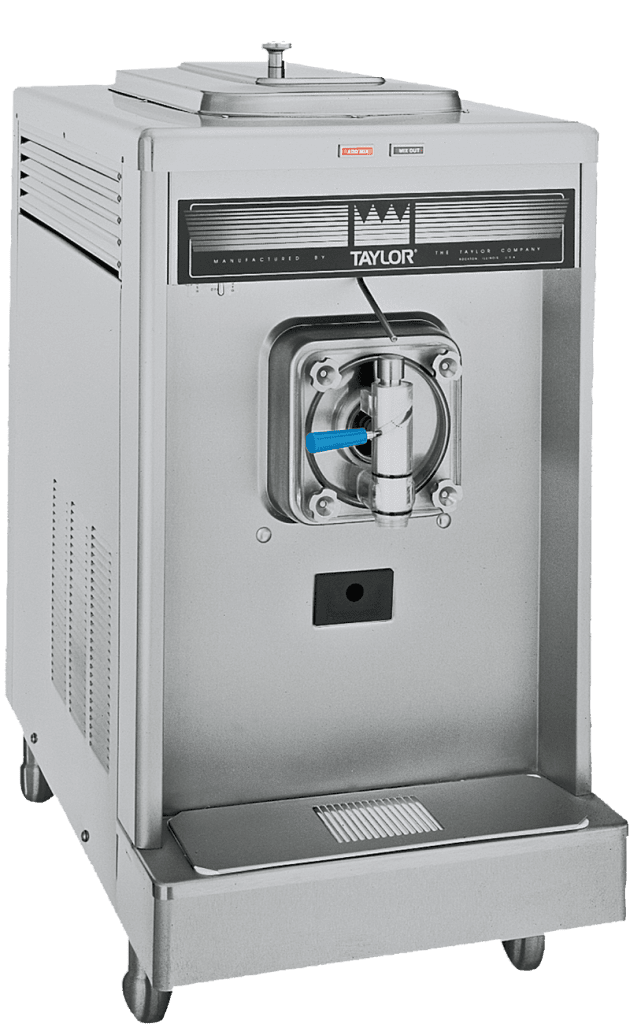

Model 390

Frozen Uncarbonated Beverage (FUB) Freezer

Serve non-dairy frozen beverages, like smoothies or frozen lemonade or cocktails, fruit juices, coffees, cappuccino and tea. Pre-mix directly into a cup or blend flavors for more variety.

KEY SPECIFICATIONS:

Finished Products: Frozen Beverage, Smoothies

Installation: Countertop

Number of Flavors: 1

Freezing Cylinder QTY: 1

Freezing Cylinder Size (qt/l): 7/6.6

  Model 428   Frozen Beverage Freezer  Vary your menu by offering shakes & smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness. Optimized refrigeration system offers efficient operation in an extremely quiet, compact, self-contained freezer.  KEY SPECIFICATIONS:   Finished Products : Frozen Beverage, Smoothies, Shake   Installation : Countertop   Number of Flavors : 1   Freezing Cylinder QTY : 1   Freezing Cylinder Size (qt/l) : 7/6.6

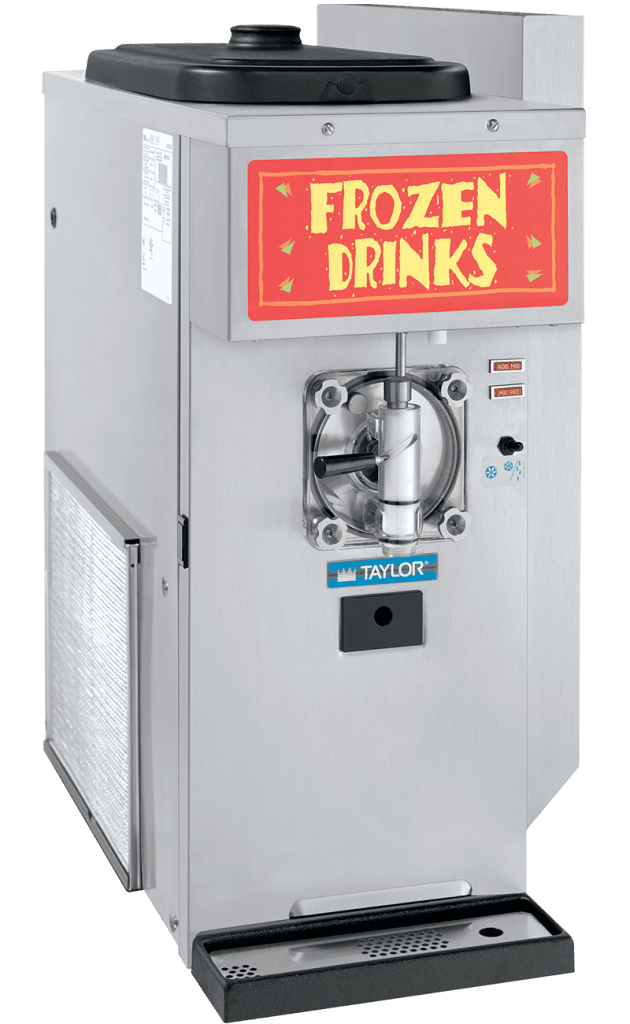

Model 428

Frozen Beverage Freezer

Vary your menu by offering shakes & smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness. Optimized refrigeration system offers efficient operation in an extremely quiet, compact, self-contained freezer.

KEY SPECIFICATIONS:

Finished Products: Frozen Beverage, Smoothies, Shake

Installation: Countertop

Number of Flavors: 1

Freezing Cylinder QTY: 1

Freezing Cylinder Size (qt/l): 7/6.6

  Model SB25   MagnaBlend®   Revolutionary service speed & technology in a smaller footprint. Experience the Revolution. Faster, smarter and better - the quick service blender of tomorrow has arrived. Designed to increase speed of service in every way, MagnaBlend redefines efficiency as we know it.  KEY SPECIFICATIONS:   Electrical : Two dedicated electrical connections are required. See the electrical chart for the proper electrical requirements. Blender must be positioned within 5 feet(1.5m) of electrical outlets. International rinse station power supply includes replaceable multiple country plugs.   Clearance : No additional clearance is required on either side of the unit for air inlet or discharge. 4 inches (100 mm) of clearance is required behind the unit to allow for proper routing of the drainage hardware. 12 inches (304 mm) of air clearance is required above the unit to allow for proper loading of ice into the ice hopper.   Water : 3/8 inch hot or cold water supply line for rinse station. Minimum 55 PSI required with a maximum of 100 PSI. Temperature-Maximum 125°F (52°C). For best results, filtered water is required.   Drain : A drain is required. The drain must be able to accommodate a 1-1/8 inch (29 mm) diameter drain tube. A minimum of 1 inch(25 mm) air gap is required between the end of the drain tube and the drain to ensure proper flow. IMPORTANT: Install blender on a level surface within 10 feet(3.05 m) of drain.   Commercial Drop Ice : Commercial drop ice allows for maximum performance and drink consistency.

Model SB25

MagnaBlend®

Revolutionary service speed & technology in a smaller footprint. Experience the Revolution. Faster, smarter and better - the quick service blender of tomorrow has arrived. Designed to increase speed of service in every way, MagnaBlend redefines efficiency as we know it.

KEY SPECIFICATIONS:

Electrical: Two dedicated electrical connections are required. See the electrical chart for the proper electrical requirements. Blender must be positioned within 5 feet(1.5m) of electrical outlets. International rinse station power supply includes replaceable multiple country plugs.

Clearance: No additional clearance is required on either side of the unit for air inlet or discharge. 4 inches (100 mm) of clearance is required behind the unit to allow for proper routing of the drainage hardware. 12 inches (304 mm) of air clearance is required above the unit to allow for proper loading of ice into the ice hopper.

Water: 3/8 inch hot or cold water supply line for rinse station. Minimum 55 PSI required with a maximum of 100 PSI. Temperature-Maximum 125°F (52°C). For best results, filtered water is required.

Drain: A drain is required. The drain must be able to accommodate a 1-1/8 inch (29 mm) diameter drain tube. A minimum of 1 inch(25 mm) air gap is required between the end of the drain tube and the drain to ensure proper flow. IMPORTANT: Install blender on a level surface within 10 feet(3.05 m) of drain.

Commercial Drop Ice: Commercial drop ice allows for maximum performance and drink consistency.

  Model 430   Frozen Beverage Freezer  Vary your menu by offering shakes & smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.   KEY SPECIFICATIONS:   Finished Products  : Frozen Beverage, Smoothies, Shake   Installation : Countertop   Number of Flavors : 1   Freezing Cylinder QTY : 1   Freezing Cylinder Size (qt/l) : 4/3.8

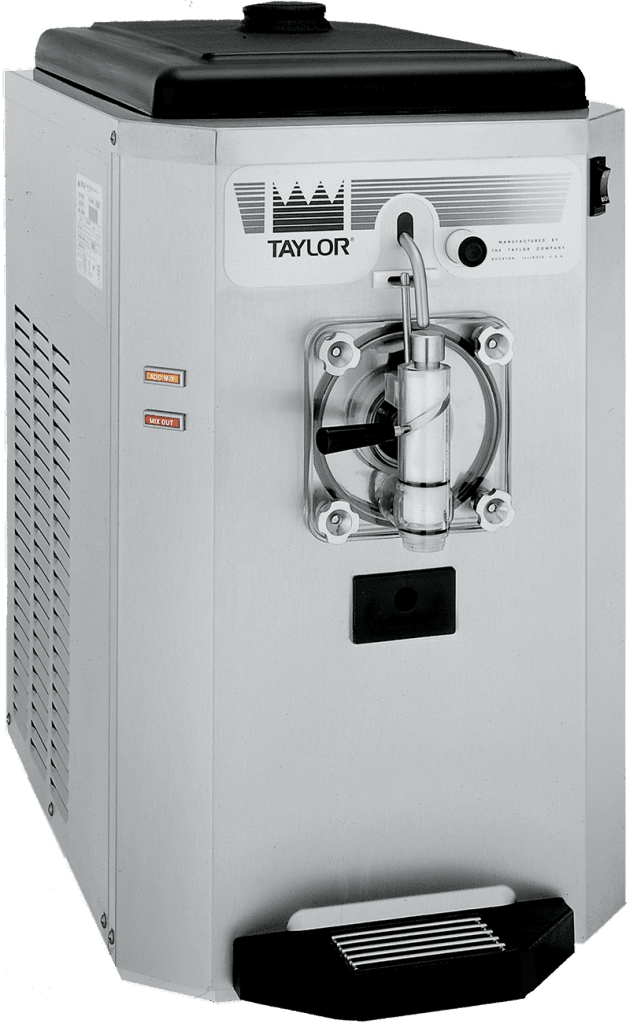

Model 430

Frozen Beverage Freezer

Vary your menu by offering shakes & smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.

KEY SPECIFICATIONS:

Finished Products : Frozen Beverage, Smoothies, Shake

Installation: Countertop

Number of Flavors: 1

Freezing Cylinder QTY: 1

Freezing Cylinder Size (qt/l): 4/3.8

  Model CO88   MagnaBlend® Pro  MagnaBlend® Pro Frozen Blended Beverage Station  KEY SPECIFICATIONS:   Electrical : One dedicated electrical connection is required. See the electrical chart for the proper electrical requirements. Manufactured to be cord connected. Cord length is 9 ft. (2.74 m) external to unit on 115/60/1.   Refrigeration System : One - 1000 btu/hr - R134A (115/60/1 and 208-230/60/1) One - 900 btu/hr - R404A (220-240/50/1)   Air Cooled : Top air discharge chute at the rear directs air exhaust upwards. No clearance required.   Water : 3/8" Hot or cold water supply line for rinse station. Minimum 55 PSI required with a maximum of 100 PSI. Temperature Max 125°F (52°C) Hot water recommended when allergenic products used. For best results, filtered water required. Quick disconnect (QD) fittings are included. CO2 90 PSI required. 3/8" line. Quick disconnect (QD) fittings are included.   Drain : A drain is required. The drain must be able to accommodate a 1-1/8" (29 mm) diameter drain tube. A minimum of 1" (25 mm) air gap is required between the end of the drain tube and the drain to ensure proper flow. 8 ft. (2.44 m) of 1” ID drain hose included.

Model CO88

MagnaBlend® Pro

MagnaBlend® Pro Frozen Blended Beverage Station

KEY SPECIFICATIONS:

Electrical: One dedicated electrical connection is required. See the electrical chart for the proper electrical requirements. Manufactured to be cord connected. Cord length is 9 ft. (2.74 m) external to unit on 115/60/1.

Refrigeration System: One - 1000 btu/hr - R134A (115/60/1 and 208-230/60/1)
One - 900 btu/hr - R404A (220-240/50/1)

Air Cooled: Top air discharge chute at the rear directs air exhaust upwards. No clearance required.

Water: 3/8" Hot or cold water supply line for rinse station. Minimum 55 PSI required with a maximum of 100 PSI. Temperature Max 125°F (52°C) Hot water recommended when allergenic products used. For best results, filtered water required. Quick disconnect (QD) fittings are included. CO2 90 PSI required. 3/8" line. Quick disconnect (QD) fittings are included.

Drain: A drain is required. The drain must be able to accommodate a 1-1/8" (29 mm) diameter drain tube. A minimum of 1" (25 mm) air gap is required between the end of the drain tube and the drain to ensure proper flow. 8 ft. (2.44 m) of 1” ID drain hose included.

  Model 432   Vary your menu by offering shakes & smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.  KEY SPECIFICATIONS:   Finished Products : Frozen Beverage, Smoothies, Shake   Installation : Countertop   Number of Flavors : 2   Freezing Cylinder QTY : 2   Freezing Cylinder Size (qt/l) : 4/3.8

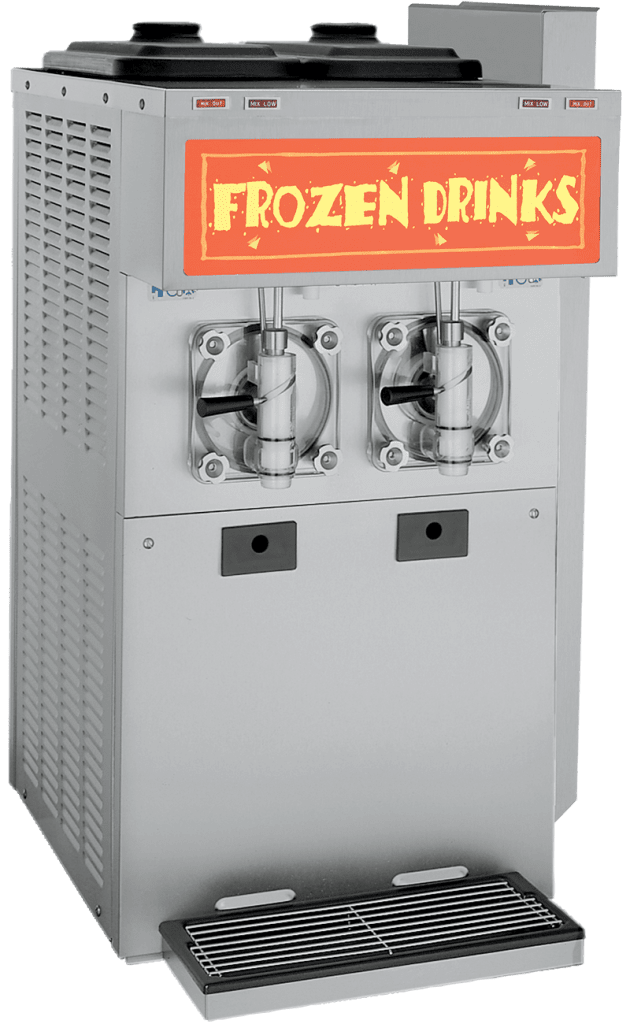

Model 432

Vary your menu by offering shakes & smoothies or frozen cocktails, fruit juices, coffees, cappuccino and tea slush beverages, all served at the desired thickness.

KEY SPECIFICATIONS:

Finished Products: Frozen Beverage, Smoothies, Shake

Installation: Countertop

Number of Flavors: 2

Freezing Cylinder QTY: 2

Freezing Cylinder Size (qt/l): 4/3.8

  Model RD30   Frozen Uncarbonated Beverage (FUB) Dispenser  Serve non-dairy frozen beverages, like frozen lemonade, fruit drinks, exotic frozen cocktails and non-alcoholic drinks.  Requires separate remote refrigeration and mix supply systems for operation. The RC25 remote refrigeration system is recommended to be installed with the RD30 for efficient operation. (See RC25 specification for further details.) Mix is stored in a remote location or walk-in cooler and delivered to the dispenser automatically. Customized mix delivery systems are available based on volume needs for Bag-in-Box, other post-mix or pre-mix products.  KEY SPECIFICATIONS:   Finished Products : Frozen Beverage   Installation : Countertop   Number of Flavors : 1   Freezing Cylinder QTY : 1   Freezing Cylinder Size (qt/l) : 7/6.6

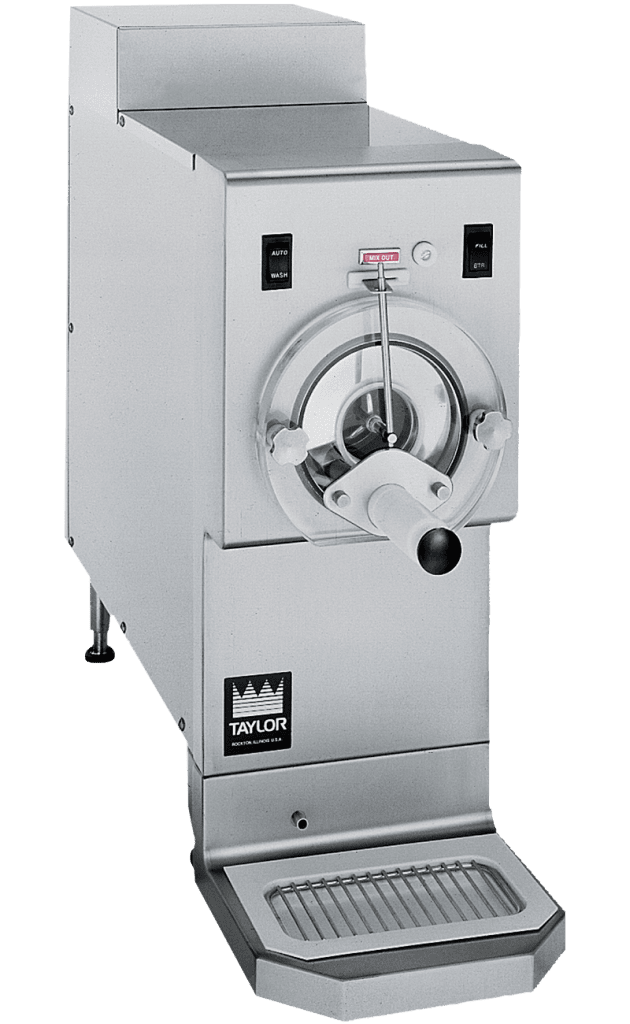

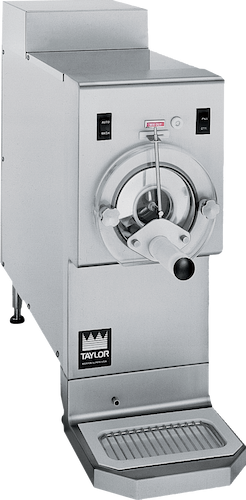

Model RD30

Frozen Uncarbonated Beverage (FUB) Dispenser

Serve non-dairy frozen beverages, like frozen lemonade, fruit drinks, exotic frozen cocktails and non-alcoholic drinks.

Requires separate remote refrigeration and mix supply systems for operation. The RC25 remote refrigeration system is recommended to be installed with the RD30 for efficient operation. (See RC25 specification for further details.) Mix is stored in a remote location or walk-in cooler and delivered to the dispenser automatically. Customized mix delivery systems are available based on volume needs for Bag-in-Box, other post-mix or pre-mix products.

KEY SPECIFICATIONS:

Finished Products: Frozen Beverage

Installation: Countertop

Number of Flavors: 1

Freezing Cylinder QTY: 1

Freezing Cylinder Size (qt/l): 7/6.6
